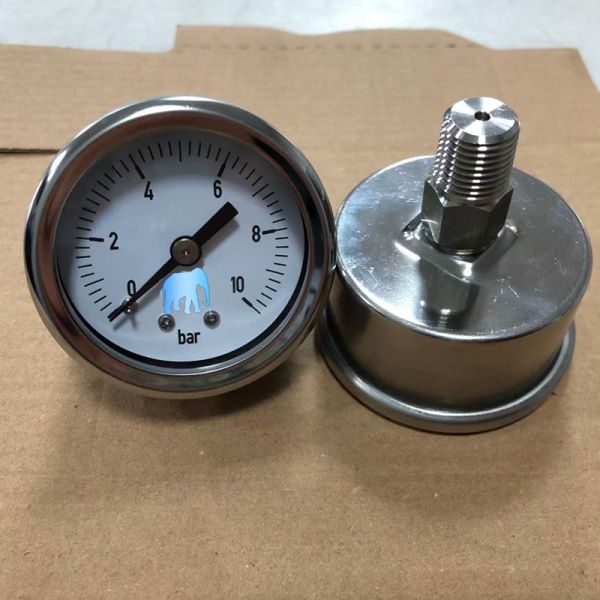

316 Stainless Steel 50mm Axial Pressure Gauge - Vibration Resistant with Bottom Connection
High-quality 316 stainless steel 50mm axial manometer designed for harsh industrial environments. This vibration-resistant pressure gauge with bottom connection offers exceptional durability for hydraulic, compressor, and chemical applications.
Product Overview
This 316 stainless steel 50mm axial pressure gauge is engineered for demanding industrial environments where corrosion resistance and durability are critical. Featuring a robust bottom connection pressure gauge design, this axial manometer provides reliable pressure measurement with excellent vibration and pulsation resistance due to its liquid-filled movement. The compact 50mm (2-inch) diameter makes it ideal for panels and equipment with space constraints.
Technical Specifications
| Specification |
Details |
| Case Material |
316 Stainless Steel |
| Dial Size |
50mm (2 inches) |
| Connection Type |
Axial/Bottom Connection |
| Thread Standard |
G1/4, 1/4" NPT, or M10*1 (customizable) |
| Accuracy Class |
±1.6% FS (Standard) |
| Pressure Range |
0-100psi to 0-6000psi (customizable) |
| Liquid Fill |
Glycerin (standard) |
| Window Material |
Safety Glass or Polycarbonate |
| Operating Temperature |
-20°C to +60°C |
Typical Applications
This 50mm axial pressure gauge is specifically designed for applications requiring corrosion resistance and vibration damping:
- Chemical Processing: Reactor pressure monitoring, pipeline pressure measurement
- Marine Equipment: Sea water systems, hydraulic controls on vessels
- Food & Beverage: Sanitary processing lines, CIP systems
- Hydraulic Systems: Compact mobile equipment, test benches
- Compressed Air/Gas: Compressor outlets, gas booster systems
- Water Treatment: High-pressure RO systems, pump monitoring
Why Choose Our Axial Manometer?
- Direct Factory Pricing - Eliminate middleman markups with competitive pricing
- Customization Options - Various pressure ranges, connection types, and dial markings
- Quality Assurance - Each axial pressure gauge undergoes rigorous calibration and testing
- Technical Support - Expert engineering assistance for application-specific requirements
Ordering & Contact Information
Ready to order this 316 stainless steel 50mm vibration-resistant axial manometer? Contact our engineering team for pricing, customization options, or technical consultation.
